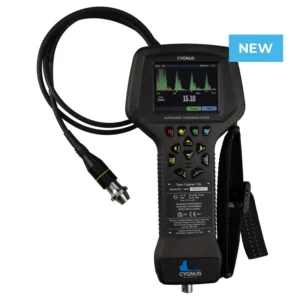

Cygnus 1 Ex
Advanced Intrinsically Safe UTGDesigned for taking reliable thickness measurements in Zone 0 Explosive Atmospheres and boasting advanced data logging and manual measurement mode. The Cygnus 1 Ex features a large colour LCD display and 3 measuring modes for through-coat measurements and various materials – including heavily corroded metals.
Features
Specifications
Information
Features
- Certified Intrinsically Safe to ATEX, IECEx, UKEX for Zone 0 and NRTL for Class 1, Division 1
- 3 measuring modes for levels of corrosion, various materials and through-coat measurements
- Manual Measurement Mode allows gates and gain to be configured to suit your application
- Live A-Scans aid visual measurement verification
- Live B-scans give a quick, cross-sectional representation
- 4 function keys for easy controls and dynamic views
- Deep Coat function ignores thick coatings
- User Access feature protects records with correct user access levels
- Measurement setup can be saved and restored for a quick start
- Measurement Freeze function and Ref/Min/Max thickness limits
- A solid-state electronic instrument with a rugged IP67 rated enclosure
- Available as SC, TC, PLUS and PRO variants with options of upgradeable features.
Specifications
| Measuring Modes | Single Echo with Twin Crystal Probes Echo-Echo with Twin Crystal Probes Multiple Echo with Singly Crystal Probes |
| Materials | Sound velocity from 1000 m/s to 9000 m/s [0.0390 in/us to 0.3543 in/us] |
| Accuracy | ±0.1 mm (±0.004”) or 0.1% of thickness measurement whichever is the greatest |
| Resolution | 0.1mm, 0.05mm or 0.01mm depending on probe type |
| Probe Options | Single crystal and twin crystal probes |
| Measurement Range in Steel | 0.8mm to 250mm (0.031 in. – 10 in.) depending on selected probe and configuration, material and temperature |
| Connector | Single Dual Coaxial Connector |
| Power Supply | Rechargeable, removable Lithium-Ion battery pack |
| Power Rating | 2W |
| Probe Sockets | Single Dual Coaxial Connector |
| Battery Life | 6-8 hours continuous measurement |
| Display | 3.5” VGA, sunlight readable colour display |
| Size | 270mm tall, 135mm wide, 80mm deep |
| Weight | 1 kg with battery |
| Operating Temp. | -0°C to +50°C (32°F to 122°F) |
| Storage Temp. | -10°C to +65°C (50°F to 149°F) |
| Data Logging | 10,000 measurements and A-scans per record |
| Computer Software | CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistical calculations. Bluetooth connection to transfer data to a Windows® computer with CygLink. |
| Certification | ATEX, IECEx and UKEX I M1 Ex ia Ma (Tamb = 0°C to +50°C) II 1G Ex ia IIC T4 Ga (Tamb = 0°C to +50°C) Certificate Numbers; ATEX: ExVeritas 21ATEX0860X UKEX: ExVeritas 21UKEX0861X IECEx: IECEx EXV 21.0035XNRTL I.S. Class I Zone 0 AEx ia IIC Ga T4 I.S. Class I Division 1 Groups ABCD T4 (Tamb = 0°C to +50°C) NRTL / MET US Certification, Listing Number E115506 |
| Environmental Protection | IP67 Pollution degree 3 |
| Standards | Designed for BS EN 15317:2000 |
| Warranty | 3 years on gauge and 6 months on probe |
Information
| Weight | 5 kg |
| Kit | Cygnus 1 Ex – SC (Single Crystal) Variant Kit WITHOUT PROBE (060-1105), Cygnus 1 Ex – TC (Twin Crystal) Variant Kit WITHOUT PROBE (060-1110), Cygnus 1 Ex – PLUS Variant Kit WITHOUT PROBE (060-1115), Cygnus 1 Ex – PRO Variant Kit WITHOUT PROBE (060-1120) |
Probes
Options

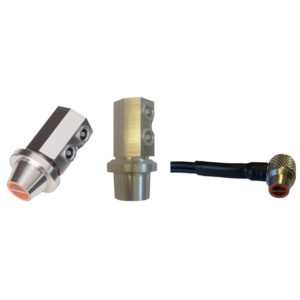

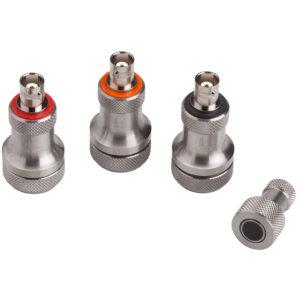

Probes
Single crystal probes (Probe Sxx) are compatible with all Variants, except TC Variant.
Twin crystal probes (Probe Txx) are compatible with all Variants, except SC Variant.
Options
Cygnus 1 Ex Variants
| SC Variant (Single Crystal use only) | Programmed with: – Deep Coat – Multiple-Echo – 1 & 2 Point Calibration – Materials List – Measurement Hold. |
| TC Variant (Twin Crystal use only) | Programmed with: – Echo-Echo & Single-Echo – Auto Probe Detection – 1 & 2 Point Calibration – Materials List – Measurement Hold. |
| PLUS Variant (Single & Twin Crystal use) | Programmed with: – Multiple-Echo, Echo-Echo & Single-Echo – Auto Probe Detection – Deep Coat, A-Scan & B-Scan – 1 & 2 Point Calibration – Materials List – Measurement Hold. |
| PRO Variant (Single & Twin Crystal use) | Programmed with: – Multiple-Echo, Echo-Echo & Single-Echo – Auto Probe Detection – Deep Coat – A-Scan & B-Scan – Data Logging (Linear, Grids, Template & Comments) – Manual Gates (A, A+B, Manual Gain) – Measurement Set-up – User Access – High Temperature Capability – 1 & 2 Point Calibration – Materials List – Measurement Hold. |
Comprehensive Data Logging (Available with PRO Variant)
- Datalogging: Basic (Linear lists) or Advanced (2D/3D Grids, Templates)
- Allows a maximum of 10,000 measurement points per record
- 16 grid patterns available
- Add radial points to any measurement (linear/grid) to further investigate immediately an area of interest or heavy corrosion
- 8 User-defined text comments to attach to any measurement point
- Auto-log feature
- Saves measurements and A-scans as records on internal memory.
Cyglink Computer Software (Available with PRO Variant)

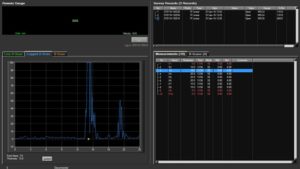

CygLink is a Windows® based application used to transfer and manage data logger records, A-scans, B-scans, templates, measurement comments and material velocity tables. The program can generate PDF reports and export to Excel. It also displays A-scans and B-scans, allowing for after-the-event analysis of logged measurements. Designed for Windows 7® and above.
