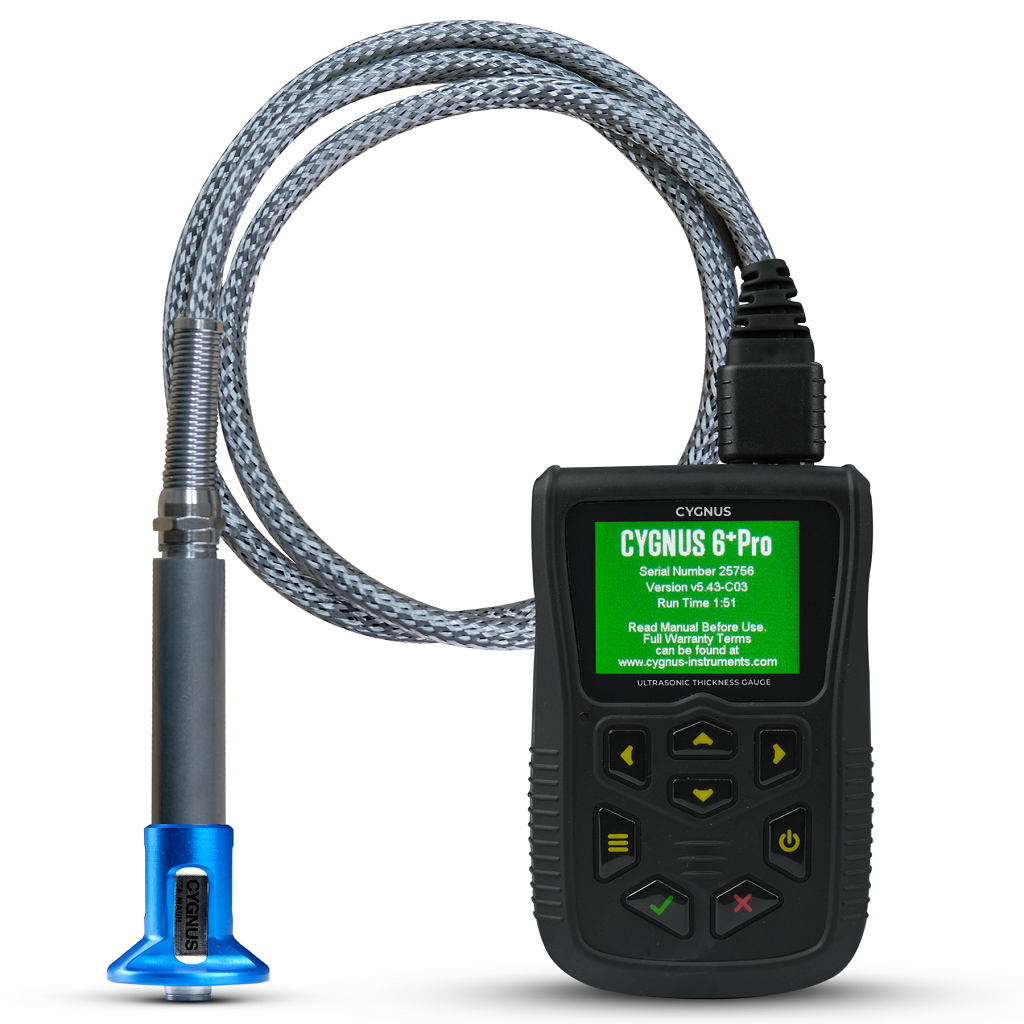

CYGNUS 6 PLUS PRO

MULTI-MODE ULTRASONIC THICKNESS GAUGE

The Cygnus 6+ PRO thickness gauge boasts a full range of useful features for professional users, including A-scan, B-scan and comprehensive data logging. Used with Cygnus High Temperature probe, the Cygnus 6+ PRO can measure remaining wall thickness of high-temperature, in-service assets without shutdown or isolation. Ideal for use in high temperature, process plants, ship surveys, plant maintenance, civil engineering, ship inspections, oil and gas facilities.

Features
Specifications
Kit contents
Information
Features

  • Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
  • Echo-Echo and Single-Echo modes for heavily corroded metals with a thin or no coating
  • Temperature Compensation feature for measurement on hot materials
  • Deep Coat function ignores coatings up to 20mm thick
  • Manual and automatic gain control
  • Min/max measurement limit functions with visual and vibrate alert
  • Uses single and twin crystal probes
  • Freeze function
  • One and two point calibration
  • Bluetooth™ for data transfer
  • Large front LCD display and end-mounted rotatable LCD display with grayscale setting for bright sunlight
  • Safe operation in explosive atmospheres: Class 1, Division 2, Group D locations only, as defined in NFPA 70, Article 500
  • Water and dust tight IP67 housing
  • Shock and impact proof to US MIL STD 810G.
  •

Specifications

Measuring ModesMultiple-Echo using 3 echoes to ignore coatings up to 20 mm (0.8 inch) thick.
Echo-Echo using 2 echoes to ignore coatings up to 1 mm (0.04 inch) thick.
Single-Echo using 1 echo
MaterialsVelocities from 1,000 – 9,000 m/s (0.0390 – 0.3543 in/us)
Accuracy±0.05 mm (±0.002 inch) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on
±0.1 mm (±0.004 inch) or 0.1% of thickness measurement whichever is the greatest – in Single-Echo & Echo-Echo measurement modes, when calibrated and measuring the same material as calibrated on
ResolutionMultiple-Echo mode – 0.1 mm (0.005 inch) or 0.05 mm (0.002 inch)
Single-Echo and Echo-Echo modes – 0.1 mm (0.005 inch) or 0.01 mm (0.001 inch)
Probe optionsSingle crystal probes, Twin crystal probes and High temperature probe
Measurement Range in Steel0.8 – 250 mm (0.031 – 10 inch) depending on selected probe and configuration, material and temperature
Connector2 x Lemo 00
Power3 x AA / R6 batteries
Battery LifeApprox. 10 hours continuous measurement
ElectronicsDual channel pulser
DisplayFront LCD 2.4 inch QVGA: 47 x 37 mm
End-mounted LCD: 25.58 x 6.38 mm
Size84 x 130 x 35 mm (3.3 x 5.1 x 1.4 inch)
Weight300 g (10.5 oz) (inc. Batteries)
Operating Temp.-10°C to 50°C (14°F to 122°F)
Data Logging5,000 measurements and A-scans per record
Max number records: 100 (soft limit)
Computer SoftwareCygLink allows remote logging and viewing of A-scan graphs
Survey and report generation to PDF file
Graphic analysis of data and statistical calculations
Environmental RatingIP67
Safe operation in Explosive Atmospheres: Class I, Division 2, Group D Locations only, as defined in the National Fire Protection Association Code (NFPA 70), Article 500. Tested using MIL-STD-810G, Method 511.5, Procedure I
MIL STD 810G Method 501.6 (high temp +55°C (131°F))
MIL STD 810G Method 502.6 (low temp -20°C (-4°F))
MIL STD 810G Method 507.6 (humidity 95%)
MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins)
Shock and ImpactMIL STD 810G Method 514.7 (vibration)
MIL STD 810G Method 516.7 (shock 20g)
MIL STD 810G Method 516.7 (transit drop 1.22 m)
StandardsDesigned for EN 15317
ComplianceCE, UKCA, RoHS
Warranty3 years on gauge and 6 months on probe



Kit contents

The Cygnus 6+ PRO High Temperature Kit comes with Probe T5B-MAUH 5MHz Twin Element & Twin Lemo 00 to Microdot Lead (050-6502/5).

Information

Weight5 kg
Kit

Cygnus 6+ PRO Standard Kit WITHOUT PROBE (050-6500/5), Cygnus 6+ PRO High Temperture Kit (050-6502/5)

Probes
Probes

To compliment our ultrasonic thickness gauges we offer a range of ultrasonic probes. The performance of any ultrasonic thickness gauge relies heavily on the probe and its suitability to the material being measured. Therefore, selecting the right probe is vital. All Cygnus’ probes are made from stainless steel and have a hard wear face or a wear membrane to protect the probe.

Variety of Cygnus INOX Probes

  • Stainless steel SINGLE CRYSTAL probes, used in multiple-echo mode, include replaceable membranes for long life, require no zeroing and have a high linear accuracy.
  • Stainless steel TWIN CRYSTAL probes, used in echo-echo and single-echo modes, have improved measurability on extreme back wall corrosion and pitting.
  • Probes for use with the Cygnus 2+, 4, 4+ and 6+ gauges are fitted with a BNC or Lemo 00 connector.

Single Crystal Probes



Twin Crystal Probes



High Temperature Probe

Twin element ultrasonic probe designed for high-temperature, in-service thickness measurements and corrosion surveys across oil & gas, refining, energy and process sectors.

  • No cooling period required – reducing inspection time and facilitating effective measurement
  • For use on hot surfaces up to 300°C
  • Measures remaining wall thickness from 1.5 to 250 mm (0.05 to 9.8 inch) – depending on temperature and material.
