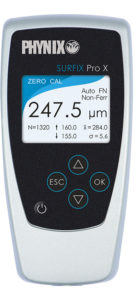

Phynix Surfix® Pro X
State of the art measurement technology
Our new premium product meets the high requirements of modern coating thickness measurement gauges with its´ many new features.
A brilliant high-resolution color display is the most strinking difference to our previous premium product Surfix® Pro S. It features the use of many different character sets, and therefore substantially increases the number of available languages for user guidance e.g. Chinese. The bright high-contrast display makes for a reliable reading of the measurements from a distance or in darkness.
The platform “Industrie 4.0” demands an improved connection of measurment devices and product controls: Surfix® Pro X meets this demand with Bluetooth 4.0 und USB 2.0 interfaces and realizes a fully connected production environment. For this purpose the capacity of the data storage has been upgraded. It can now store up to 100.000 values including date, time and calibration in files and folders.
Surfix® Pro X offers exchangeable probes and highest precision combined with simple handling in almost every application area.
- Electroplating
- Paint shops
- Automotive industry
- Chemical industry
- Aerospace industry
- Ship building industry
- Tyre industry
- Quality management and final inspections
- Laboraties and research facilities
- High-resolution color display
- Innovative and user-friendly measurements
- Automatic recognition of the base material
- Automatic setting of the required measurement mode
- Data storage for up to 100,000 values with name, date and time and up to 1,000 individual calibration
- Online-statistics of all common parameters
- Data transfer via USB 2.0 und Bluetooth 4.0
- Intuative user guidance – multi language menus
- Scan-mode for continuous measurements
- Optional plastic foot to 150 °C or 300 °C
- Producer inspection certificate
- 2 year warranty
| Measuring principle | Depending on probe; for information see our probe selection |
| Range | Depending on probe up to 30 mm |
| Accuracy | Depending on probe up to ± (0,7 µm + 1 % of measurement) |
| Resolution | 0,1 µm or <0,2% of measurement |
| Display | High-resolution color display backlight |
| Calibration method | Factory-, zero-, foil-, two-foil-calibration Offset-function: add. or subtract. of a constant value |
| Statistics | Single and block value, selectable block size Parameter: n, x¯ , s, Min, Max, Kvar, cp, cpk |
| Memory | 100,000 values |
| Interface | Bluetooth 4.0 USB 2.0 |
| Operating temperature | 0 °C to + 60 °C |
| Surface temperatur | -15 °C to + 60 °C to + 150 °C / + 300 °C (with optional foot) |
| Dimensions (device) | 137 mm x 66 mm x 23 mm |
| Dimensions (probe) | Depending on probe |
| Weight | 205 g incl. batteries |
| Protection class | IP 52 (protected against dust and dripping water) |
| Standards | DIN, ISO, ASTM, BS |
| Warranty | 2 years |
- Gauge Surfix® Pro X
- Protective rubber cover
- Carrying case
- 2 batteries AA
- PHYNIX.connect data transfer software
- Manufacturer’s certificate
- Instruction manual
- Probes according to PHYNIX delivery program
- Measurement support for precision measurements on small parts
- Calibration standards
- Manufacturer‘s certificate TYP M DIN 55350
- Soft bag
- USB cable
- High temperature feet for measurments on hot surfaces up to 150°C / 300°C
